| Naam: | Peddeldroger | Trefwoord: | Holle Peddeldroger |
|---|---|---|---|
| belangrijkste verkoopargumenten: | Energiebesparing | functie: | Lage energie Hoge efficiëntie |
| Markeren: | Slurry Processing Paddle Dryer,Continuous Dual Shaft Paddle Dryer,Powder Processing Paddle Dryer |
||

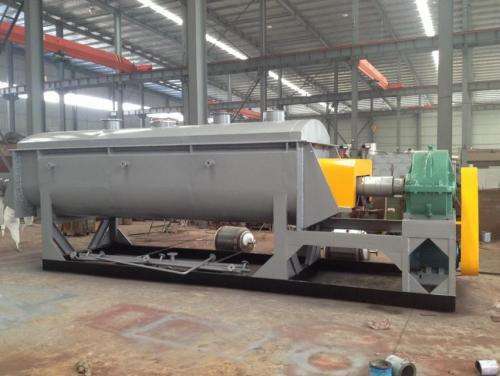

Horizontal Sludge Hollow Blade Paddle Dryer Energy Saving
Product Description:
Our Continuous Paddle Dryer is a high performance, dual shaft agitation system engineered for the seamless processing of slurry, powder, and paste materials
The system excels in complex unit operations, including drying, cooling, and sterilization, while maintaining a consistent "piston flow" of material along the axial direction
Key Features & Performance
Continuous Agitation System: The dual or quad-shaft design allows for non-stop material processing, ideal for high-volume industrial environments
Wedge-Shaped Self-Cleaning Blades: Densely arranged hollow blades create a washing effect that removes adhering material, ensuring the heat transfer surface remains clean and efficient
Indirect Conduction Heating: By using indirect heating, the system eliminates heat loss associated with large air volumes, ensuring all energy is directed toward the material
Precision Mixing: The special compression-expansion stirring effect of the wedge-shaped blades ensures material particles are in full contact with the heat transfer surface
Small Footprint: High heat transfer area per unit effective volume reduces equipment size and building space requirements
Technical Specifications
| project | KJG9 |
| model | |
| heat transfer area(m2) | 9 |
| Effective volume(m3) | 0.32 |
| Speed range(rmp) | 10-25 |
| power(kw) | 4 |
| Container width A(mm) | 584 |
| Total width B(mm) | 841 |
| Container width C(mm) | 2820 |
| Total length D(mm) | 4876 |
| Inlet/outlet distance E(mm) | 2540 |
| Center High F(mm) | 380 |
| Total height H(mm) | 838 |
| Inlet N(inch) | 3/4 |
| Outlet O(inch) | 3/4 |
Installation structure diagram
Low Operating Costs: The robust mechanical structure minimizes wear and tear, leading to exceptionally low maintenance expenses
Eco-Friendly Operation: Minimal air usage means very low dust entrainment and simplified environmental control
High Energy Efficiency: For slurry processing, only 1.2 kg of steam is required to evaporate 1 kg of water
Versatile Thermal Media: The equipment can utilize steam, hot water, or thermal oil as the heat carrier, depending on your process needs
Application Cases
| name | Jiangyin Farsun |
| Processing Equipment: | Paddle Dryer |
| Initial Moisture: | 70% |
| Final Moisture: | 25% |
| Processing Capacity: | 200 kg/h ~ 300 kg/h |
| Processing Equipment: | |
| Before processing | After processing |
|
|
FAQ
Q: How does the "piston flow" benefit continuous processing?
A: It ensures that material moves through the dryer uniformly. Within the axial range, the temperature and humidity gradients are very small, which guarantees process stability for 24/7 operations.
Q: What is the temperature range for the heat transfer medium?
A: The system can handle a wide range from -40°C to 320°C, making it suitable for both cooling and high-temperature reactions.
Q: Is this dryer suitable for flammable materials?
A: Yes. Because it uses indirect conduction heating and minimal air, it is particularly suitable for flammable, easily oxidized, and heat-sensitive materials.
