Horizontal High Efficiency Paddle Dryer System Energy Saving For Wet Material

Horizontal High Efficiency Paddle Dryer System for Wet Material

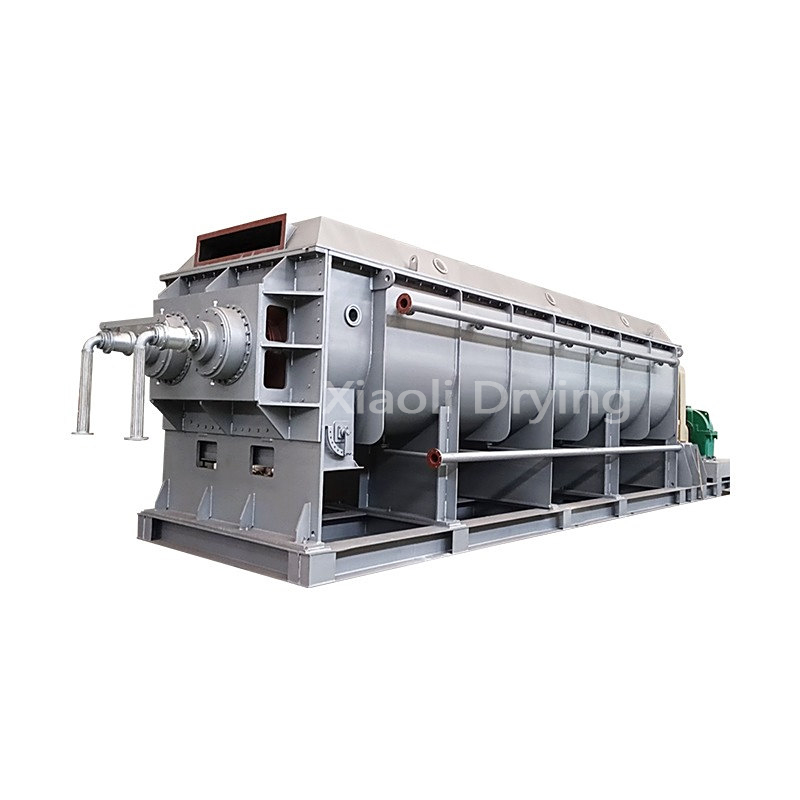

The KJG-9 Horizontal Paddle Dryer System is a high efficiency, energy saving industrial drying solution engineered for wet material processing. With 9 m² heat transfer area, indirect heating technology, and horizontal configuration, it delivers uniform, low-energy drying for a wide range of industrial wet materials.

Key Features

• High Efficiency Drying: 9 m² heat transfer area with double-jacketed hollow paddles ensures rapid, uniform indirect heat transfer for efficient wet material moisture removal.
• Energy Saving Design: Only 3.8 kW power consumption with indirect steam heating maximizes thermal efficiency, significantly reducing operating costs compared to conventional direct-heat dryers.
• Horizontal Configuration: Space-efficient horizontal design with 4,876 mm total length enables easy integration into existing production lines and convenient material handling.
• Wet Material Optimized: Hollow paddle agitation mechanism handles high-moisture feed materials effectively, preventing clumping and ensuring uniform drying throughout the batch.
• Variable Speed Control: 10-25 r.p.m adjustable rotation speed allows precise control of residence time to match specific wet material drying characteristics and target moisture levels.
• Indirect Heating: Steam-heated hollow paddles and jacketed vessel provide gentle, non-contact drying that preserves material quality while preventing contamination.
• Low Maintenance Operation: Robust mechanical design with accessible components minimizes downtime and maintenance costs in continuous industrial processing environments.

Technical Specifications

Applications

The KJG-9 Horizontal Paddle Dryer System is ideal for energy saving drying of various wet materials in industrial processing. Typical applications include: chemical wet cake and sludge drying, food processing by-product dehydration, mineral concentrate drying, wastewater treatment sludge processing, pharmaceutical intermediate wet powder drying, and industrial waste material volume reduction.

Why Choose KJG-9?

The KJG-9 Paddle Dryer System combines high efficiency indirect drying with energy saving operation at just 3.8 kW. Factory-tested and built for industrial reliability, it delivers cost-effective wet material drying performance with minimal environmental impact.
